Configuration of the Tani OPC Server

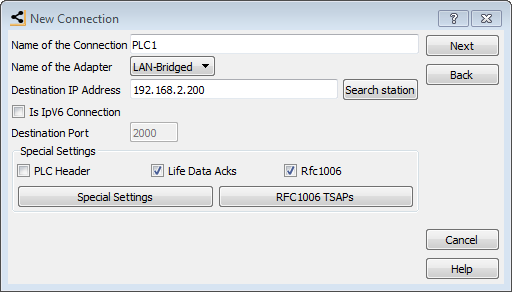

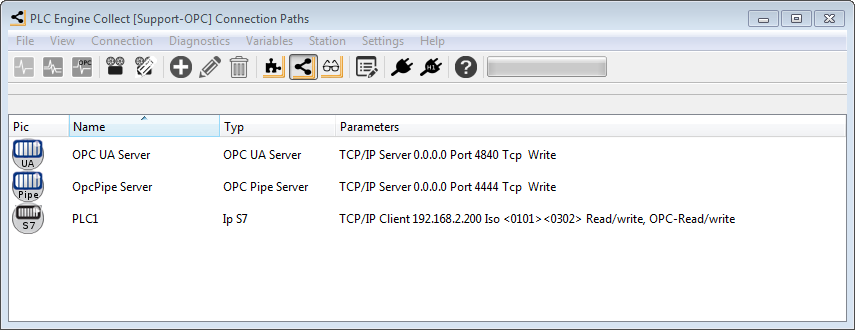

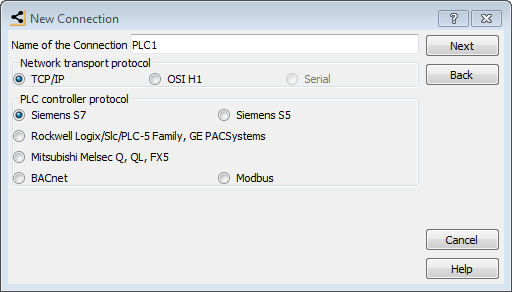

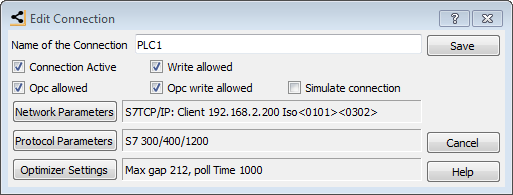

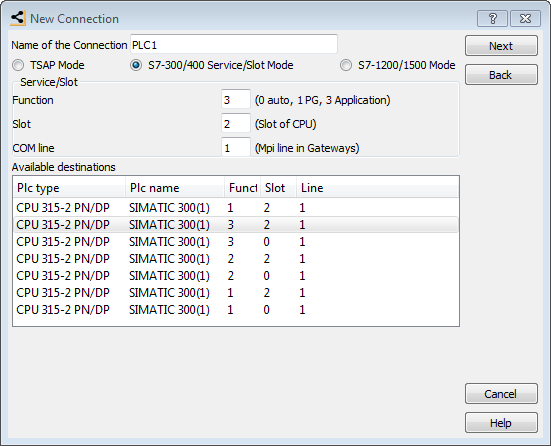

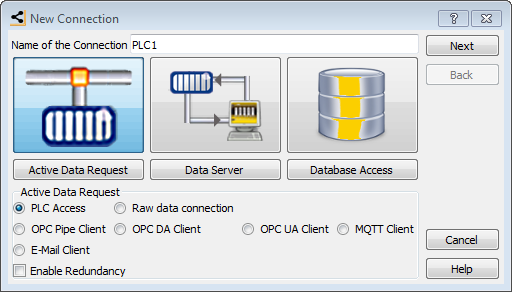

The connection to an S7-300 PLC with the name PLC1 is configured here.
However, the parameters can be converted automatically via the menu item "Settings" - "Import Configuration from INAT Opc or DDE Server".
Window Maker
In the Intouch Window Maker, the corresponding Access Name is configured via the Gateway
| • | Here the "Topic Name" is formed by the group "OPC" and the connection name "PLC1" separated by an underscore. This corresponds to the "Device Group Name" in the gateway configuration. |
| • | The "Application Name" is called "FsGateway" in older versions. |
